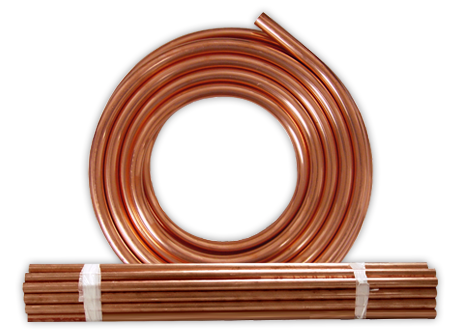

JMF Copper Tube

JMF

Options

For safety and reliability, pure Copper Tubing remains the # 1 choice of design engineers and professional plumbers. JMF stocks a complete line of Copper Tubing in types M, L, K, Refrigeration, ACR, Cleaned and Capped, and Level Wound Coils. All copper tubing meets ASTM and NSF requirements.

Tube Type	Color Code	Application	Straight Sizes		Coil Sizes
K	Green	Underground Water Service Fire Protection Solar Fuel/Fuel Oil HVAC Snow Melting	1/4" to 4"	20'	1/4" to 1-1/4"	60' & 100'
L	Blue	Water Service Distribution Residential & Commercial Natural, Liquified & Petroleum Gas Fire Protection Solar Fuel/Fuel Oil HVAC Snow Melting	1/4" to 3/8" 1/2" to 1" 1-1/4" to 4"	20' 10' & 20' 20'	1/4" to 1-1/4" 1-1/2" 2"	60' & 100' 60' 40'
M	Red	Residential Water Service Distributoion Snow Melting Solar	1/4" to 3/8" 1/2" to 1" 1-1/4" to 4"	20' 10' & 20' 20'
DWV	Yellow	Drain, Waste & Vent	1-1/4" to 4"	20'
ACR		Air Conditioning & Refrigeration	3/8" to 4-1/8"	20'
REFER		AIr Conditioning & Refrigeration			1/8" to 3/16" 1/4" 5/16" 3/8" to 5/8" 3/4" to 1-5/8"	50' 50' & 100' 50' 50' & 100' 50'
L Handi Lengths	Blue	Do-It-Yourself Market	1/2" to 1"	2' 4' 6'
L Handi Coils	Blue	Do-It-Yourself Market			1/4" to 1/2"	10' 15' 20' 25' 50'
M Handi Lengths	Red	Do-It-Yourself Market	1/2" to 1"	2' 4' 5'
Utility Handi Coils		Do-It-Yourself Market Retail Boxed			1/4"OD 3/8"OD 1/2"OD 5/8"OD	10' to 50' 10' to 50' 10' to 50' 10' to 50'
