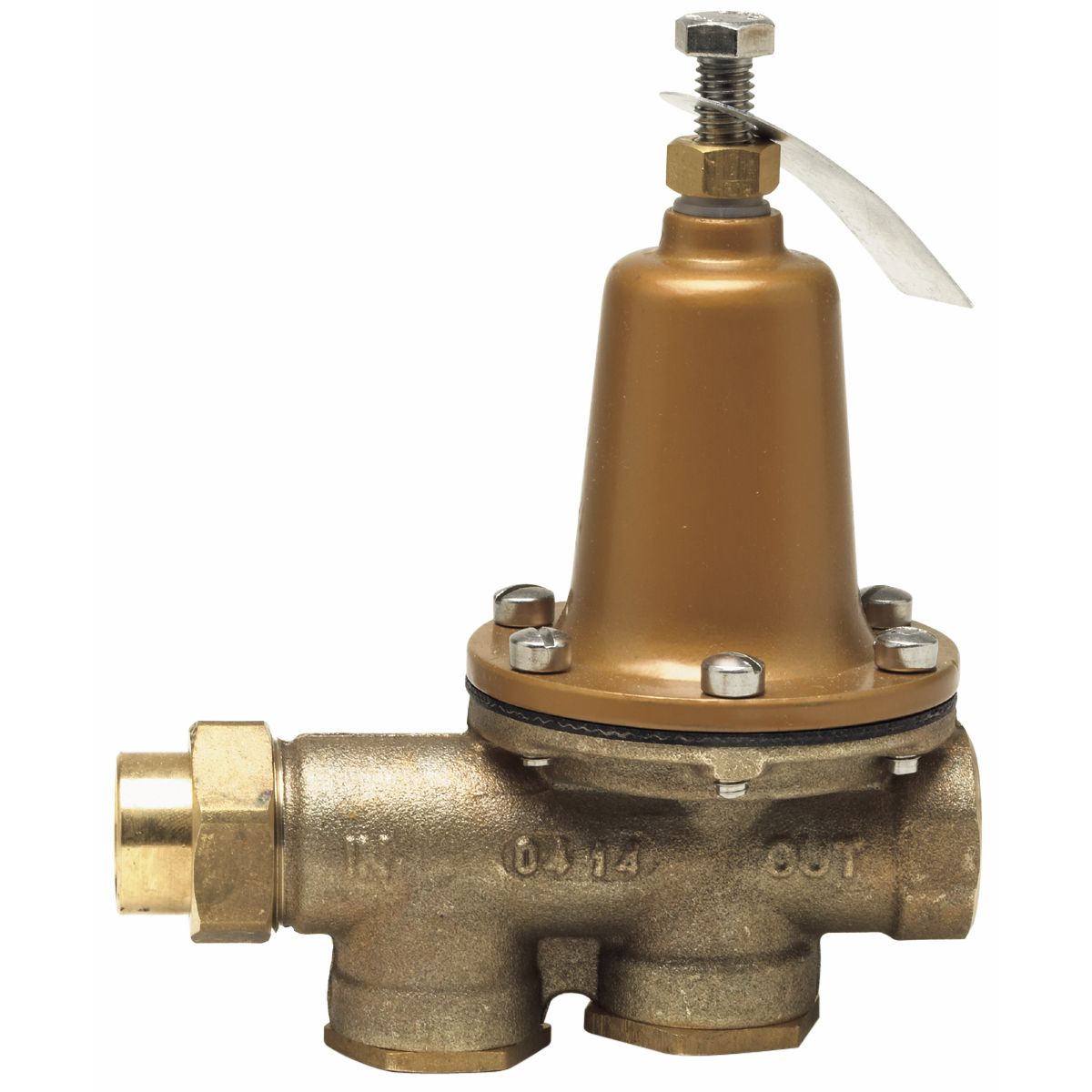

Watts 0009431 1-1/2" LF25AUB-Z3 Press Reducing Valve


This 1 1/2 IN lead free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).


Sealed spring cage with stainless steel cage screws
Integral stainless steel strainer removable for cleaning
Replaceable seat module
Lead free construction
