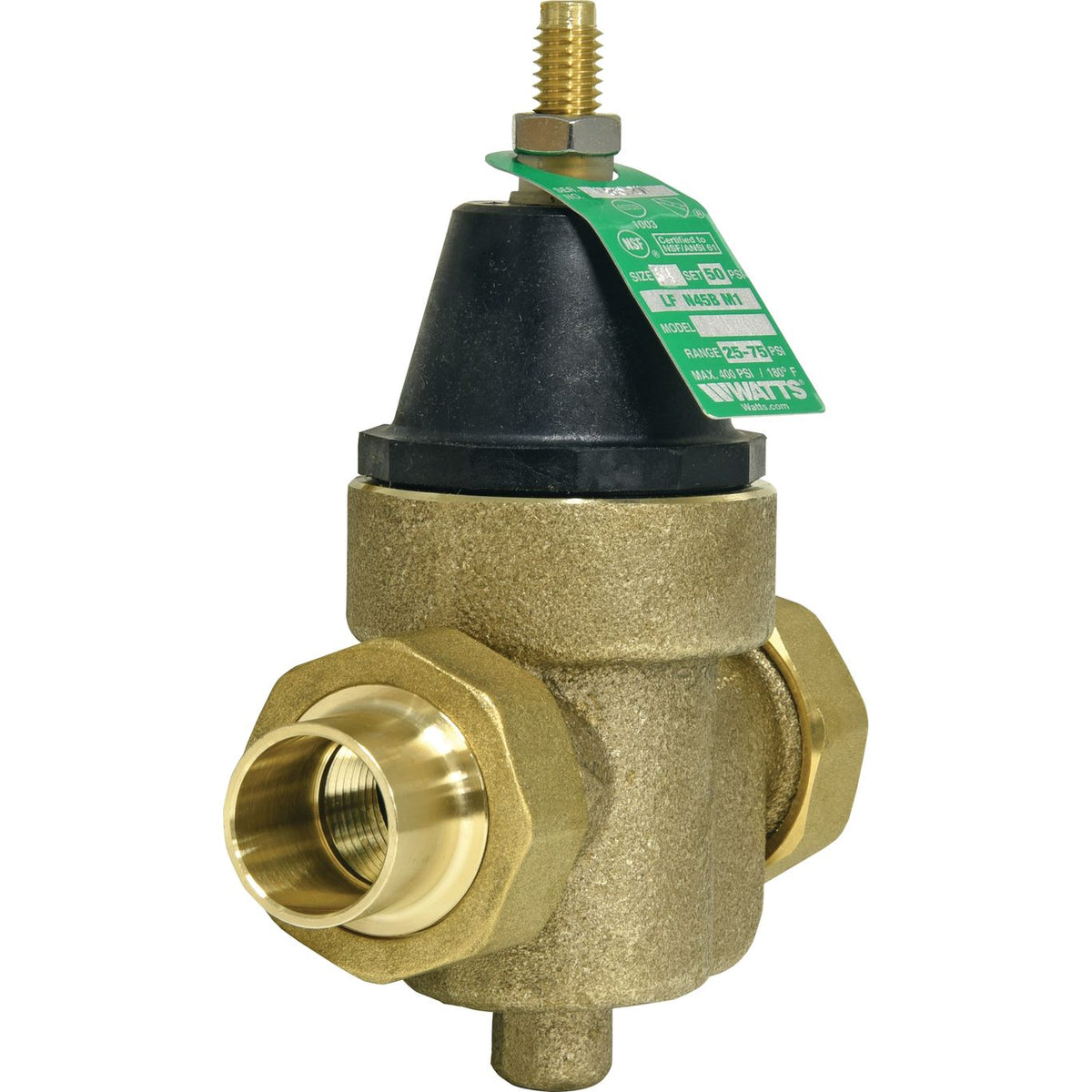

Watts 0009481 3/4" N45BM1DUS Pressure Reducing Valve

Watts 0009481 3/4" N45BM1DUS Pressure Reducing Valve

Watts



This 3/4 inch lead free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free cast copper silicon alloy body construction, double union solder inlet and outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 400 psi (27.6 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).

Features

Sealed spring cage for accessible outdoor or pit installations
Integral stainless steel strainer removable for cleaning
Solder union inlet and outlet
Thermoplastic seat and cage
